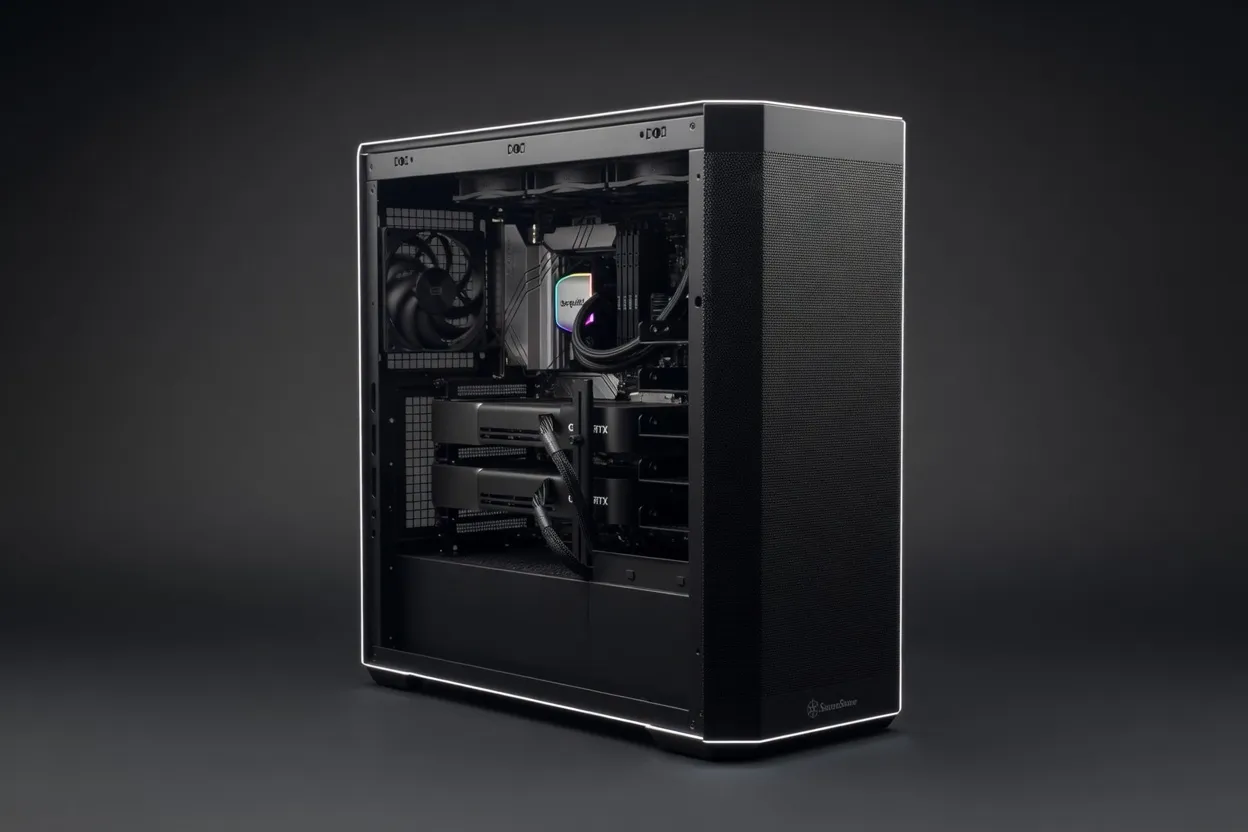

NOVATECH AI Workstation (i9-14900K + RTX 5080)

The NOVATECH AI Workstation (i9-14900K + RTX 5080) is a single-GPU, liquid-cooled tower designed for developers and researchers who need a dedicated local machine for AI inference, model experimentation, and small-scale training. Assembled and stress-tested in the USA, it targets the prosumer segment—sitting between a high-end gaming PC and a data-center server. At a $3,999 MSRP, it competes directly with pre-built workstations from Puget Systems, Lambda Labs, and boutique integrators like Mercury PC.

This isn’t a general-purpose desktop. The combination of an Intel Core i9-14900K (24 cores, 32 threads, up to 6.0 GHz) and an NVIDIA GeForce RTX 5080 with 16 GB GDDR7 memory is optimized for CUDA-accelerated inference and data-parallel workloads. The 64 GB of DDR5-6000 RAM and 2 TB NVMe SSD handle dataset loading and context windows that exceed VRAM limits. For practitioners running local LLMs, this machine delivers production-ready throughput without the latency or cost of cloud GPU instances.

---

• VRAM: 16 GB GDDR7
• Memory Bandwidth: 960 GB/s
• FP16 Performance: 56 TFLOPS
• TDP: 360 W (GPU) + 253 W CPU (MTP) = ~700 W system load

The RTX 5080’s 960 GB/s bandwidth is a key differentiator. For autoregressive language models, token generation speed is often memory-bandwidth-bound—higher bandwidth means more tokens per second. The 56 TFLOPS FP16 throughput also accelerates batched inference and fine-tuning with libraries like torch.compile or vLLM.

• CPU: Intel Core i9-14900K (8 P-cores + 16 E-cores, 32 threads)
• RAM: 64 GB DDR5-6000 (dual-channel)
• Storage: 2 TB NVMe SSD (PCIe 4.0)
• Power: 850W 80+ Gold PSU
• Cooling: 360mm liquid AIO CPU cooler
• Case: SilverStone SETA H2 (mid-full tower)

The i9-14900K provides headroom for CPU-side preprocessing, prompt tokenization, and offloading layers when VRAM runs out. The 64 GB system RAM allows offloading of large model weights (e.g., 70B models at Q3) without swapping to disk, keeping inference usable.

Under sustained 700W load, the liquid CPU cooler and case airflow keep temperatures within spec. The 850W PSU is adequate for the RTX 5080 (360W) and i9-14900K (253W MTP) with some margin, but upgrading to 1000W+ is recommended if you plan to add a second GPU later—though the motherboard and case support only single GPU.

---

This workstation’s 16 GB VRAM defines its model capacity. Below are realistic quantization levels and expected performance for popular open-weight models.

These models run entirely on GPU, delivering low latency for interactive chat and single-request inference.

• 13B models at Q5_K_M (~10 GB VRAM) – fit comfortably. Example: Llama 3.1 13B, CodeLlama 13B. Expect 50–70 tok/s.
• 32B models at Q4_K_M (~18 GB VRAM) – requires offloading ~2 GB to system RAM. Example: Qwen 2.5 32B, Yi-34B. With 64 GB system RAM, offloading a few layers yields 15–25 tok/s.
• 70B models at Q3_K_M (~24 GB VRAM) – heavy offloading (8+ GB to system RAM). Example: Llama 3.1 70B, DeepSeek-R1 70B. Expect 5–10 tok/s—usable for batch processing but not real-time chat.

Vision-language models like LLaVA-NeXT (7B/13B) or Qwen2-VL (7B) fit at Q5_K_M with room for image embeddings. Long-context models (128K tokens) at 8B scale require careful context caching; the 64 GB system RAM helps store KV caches for extended sequences.

The best quality-to-speed tradeoff on this hardware is 13B models at Q5_K_M or 7B–8B models at Q4_K_M or Q5_K_M. These configurations maximize token throughput while preserving accuracy for production-grade responses.

---

If you want a private, uncensored assistant without API costs, this workstation runs Llama 3.1 8B or Mistral 7B at interactive speeds. The 16 GB VRAM also supports voice-to-text (Whisper) and text-to-speech (XTTS) models simultaneously.

Teams prototyping agentic workflows or RAG pipelines benefit from the fast NVMe storage for vector databases and the 64 GB RAM for large context windows. The RTX 5080 handles batched inference for multi-turn agents without dropping to CPU fallback.

For a single-user or small-team inference endpoint (e.g., using vLLM or llama.cpp server), this workstation can serve 7B–13B models at 100+ tok/s with batch size 1. It’s a cost-effective alternative to renting an A10G or L40S instance long-term.

Organizations with data sovereignty requirements can deploy this machine on-premise for sensitive inference tasks. The 850W PSU and liquid cooling allow 24/7 operation in an office environment.

This is primarily an inference machine. For fine-tuning models larger than 7B, the 16 GB VRAM limits batch sizes—you’ll need gradient checkpointing and LoRA adapters. Full-parameter training of 13B+ models is impractical. Use it for inference, evaluation, and small-scale fine-tuning (LoRA/QLoRA).

---

• Price: ~$4,500
• VRAM: 24 GB (4090) vs 16 GB (5080)
• Memory Bandwidth: 1,008 GB/s (4090) vs 960 GB/s (5080)
• FP16 TFLOPS: 82 (4090) vs 56 (5080)

Choose the NOVATECH if you prioritize lower cost and newer architecture (GDDR7, DLSS frame gen irrelevant for AI). The 24 GB 4090 handles 32B models at Q4 without offloading and 70B at Q3 with less system RAM dependency. For pure inference on larger models, the RTX 4090 workstation is more capable.

Building yourself might save $200–400, but the NOVATECH includes assembly, stress testing, a 3-year limited hardware warranty, and lifetime support. For practitioners who value plug-and-play reliability, the premium is justified.

• You need a single-GPU machine for 7B–13B inference at high throughput.
• You want a turnkey system with USA-based support.
• You’re willing to offload for 32B+ models and don’t need 24 GB VRAM.
• You prefer GDDR7 memory bandwidth for future model architectures that exploit higher bandwidth.
